Indoor Ultra-Thin P10 Flexible Transparent LED Display with 90% Transparency and 3500 Nit Brightness Shopping Mall Advertising Display
1. Flexible Transparent LED Film Display Technical Parameters:
| Pixel Pitch | 10mm(x*y) |
| Pixel | 10,000 points/㎡ |
| LED specification | SMD2121 (light drive in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 100*24 |
| Permeability | ≥90% |
| Box wiring mode | Internal wiring (clean back) |
| Weight | ≤ 7KG/㎡ |
| White balance brightness | ≥3500cd/㎡ |
| Peak power consumption | 600 W/㎡ |
| Average power consumption | About 200 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840hz |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| working temperature | -20~50 ℃ |
| Theoretical service life | 100000 hours |
| Warranty | 2 years |
2. Features of the Transparent Film Screen:
① Hassle-free Installation: Eliminates the need for steel structures, enabling direct adhesion to glass surfaces for quick, straightforward setup—saving both time and labor during installation.
② Ultra-slim Profile: Boasts an incredibly thin 2.5mm thickness, ensuring it blends seamlessly with glass or other surfaces without creating a bulky appearance, preserving the original aesthetics of the space.

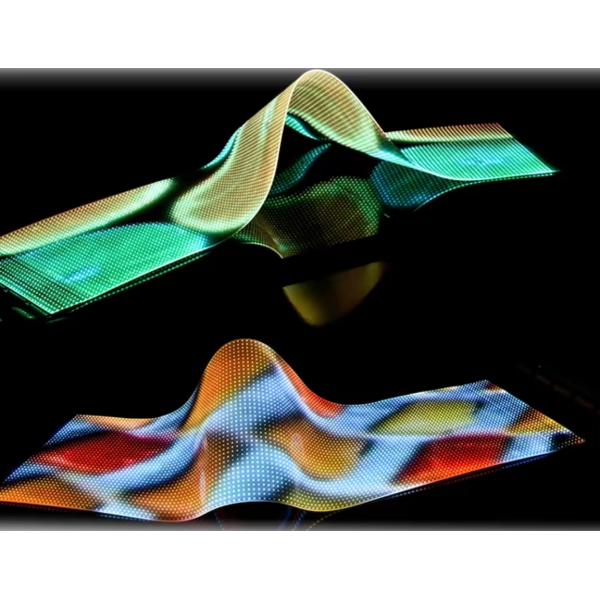

③ Flexible Design for Creative Freedom: Crafted from soft, malleable materials that accommodate versatile installations, including curved surfaces, circular shapes, or custom contours, making it ideal for unique architectural or retail displays.
3. Advantages of the Transparent Film Screen:
① Effortless Installation with Secure Adhesion: No steel frames required—simply apply the thin screen gently and connect the power signal. Our proprietary glue-filling technology equips the screen with built-in viscosity, allowing direct attachment to glass. The colloid offers strong adsorption, and its adhesion naturally strengthens over time due to the material’s inherent properties, ensuring long-term stability without damaging surfaces.
② Safe, Energy-efficient, and Viewer-friendly: Features a frameless design paired with a hidden power supply for a sleek, unobtrusive look. The LED surface is coated with an anti-glare nano-layer, reducing eye strain and eliminating visual pollution. This combination ensures safe, reliable operation while maintaining energy efficiency—perfect for extended use in commercial or public spaces.
③ Exceptional Transparency for Dual Visual Appeal: The CF Series Crystal Film Transparent LED Screen delivers over 85% transparency, striking an ideal balance between display performance and clarity. Viewers can enjoy vibrant, dynamic visuals on the screen while still seeing through to the background, making it perfect for storefronts, glass partitions, or exhibition spaces where maintaining visibility is key.
|
|

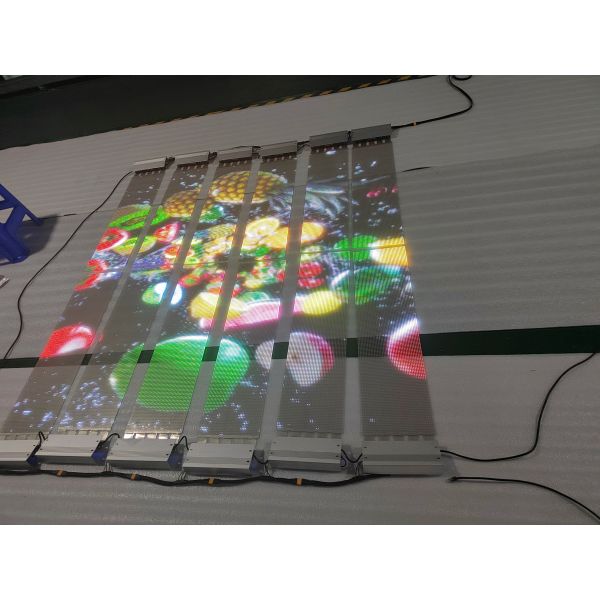

Indoor Ultra-Thin P10 Flexible Transparent LED Display with 90% Transparency and 3500 Nit Brightness Shopping Mall Advertising Display Images
|
